Medium-voltage voltage transformer – EEGS20 20kV
Article no.: EEGS20-10
Voltage transformersMedium-voltage voltage transformer EEGS20 for a rated voltage of 20 kV. Standard solution for 20 kV medium-voltage grids.
- Article no.
- EEGS20-10
- Category
- Voltage transformers
- Voltage level
- Medium voltage
- Delivery
- Express throughout Europe
Properties
Transformation ratio: 20,000V/√3 // 100V/√3 / 100V/√3 / 100V/3
Winding 1: 15VA, class 0.2 (1a-1n), incl. conformity assessment under German calibration law (approved for billing, formerly “calibrated”)
Winding 2: 15VA, class 0.2-3P (2a-2n)
Winding 3: 100VA, class 3P (da-dn)
Comparable to other variants such as: VES 12|17.5|24 voltage transformer, GSE 12/0 3.6|7.2|12 voltage transformer, VEN 12|17.5|24|36|52|72.5 voltage transformer, VZS 12|17.5|24 voltage transformer, GSZ 12/0 3.6|7.2|12 voltage transformer, VZN 12|17.5|24|36 voltage transformer
Dimensions
- Overall height
- 280 mm
- Overall width
- 175 mm
- Overall depth
- 330 mm
- Weight (approx.)
- 28 kg

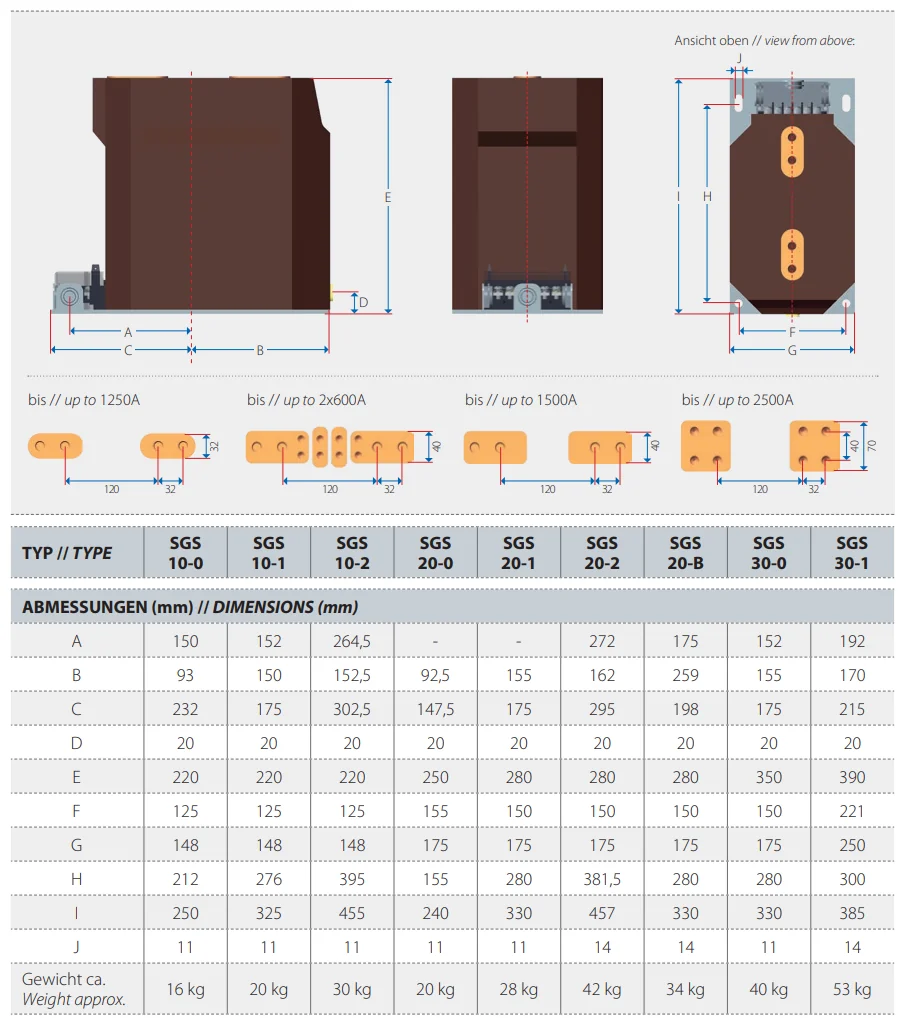

Technical drawing
